GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files

GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files
GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files
Basisinformatie
Plaats van herkomst: China
Certificering: CE
Min. bestelaantal: 1
Verpakking Details: karton
Levertijd: Tijdstip van het hoogseizoen: binnen 15 werkdagen Tijdstip van het laagseizoen: binnen 15 werkdagen
Betalingscondities: T/T, PayPal
Levering vermogen: 5000
Beste prijs Contact nu
Gedetailleerde informatie
Modelnr.: R502-F Scherm: Als foto
Communicatie-interface: RS232 Fingerafdrukcapaciteit: 1500
Spanning: DC 3,3 V Effectieve verzamelruimte: Diameter 15,5 (mm)
Sensorarray: 190*190 pixels Oplossing: 508 dpi
Abrasieve weerstandsintensiteit: 1 miljoen keer Antistatische capaciteit: 15 kv
Vingerafdrukmodule Externe diameter: 21.5mm Vingerafdrukmodule Interne diameter: 19.4mm
Fingerafdrukmodulhoogte: 9 mm Gewicht: 5g
Led-besturing: Ja Transportpakket: Standaard exportpakket
Specificatie: Diameter 22 (mm) Handelsmerk: GROEIEN
Oorsprong: China Hs-code: 8471609000
Levering vermogen: 5000 Stemdienst: Zonder spraakdienst
Klok: Zonder klok Kleur: Als foto
Monsters: US$ 14,5/stuk 1 stuk (min. bestelling) Maatwerk: Beschikbaar op aanvraag
Verzendkosten: over verzendkosten en geschatte levertijd. Betaalmethode: Aanvankelijke betaling Volledige betaling
Munteenheid: US $ Return & Restituts: U kunt tot 30 dagen na ontvangst van de producten een terugbetaling aanvragen.

Productomschrijving


GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files 0

Description

        1. Integrated image collecting and algorithm chip together, ALL-in-One
        2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
        3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box

*The R502-F Pro have 1500 capacity and it is IP65 waterproof design.(Except the connector part, after install the R502-F Pro, you can protect it by yourself)
*When the ambient temperature fluctuates greatly, the glue may be affected, thus affecting the waterproof effect.

R502-F Pro Specifications

Model R502-F Pro
Type Capacitive Fingerprint Module
Interface UART(TTL)
Resolution 508 DPI
Voltage DC 3.3V
Fingerprint Capacity 1500
Sensing array 192*192 pixel
Working current 20mA
Standby current Typical touch standby voltage: 3.3V, Average current: 2uA

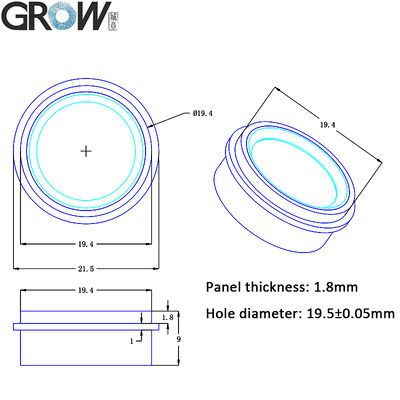

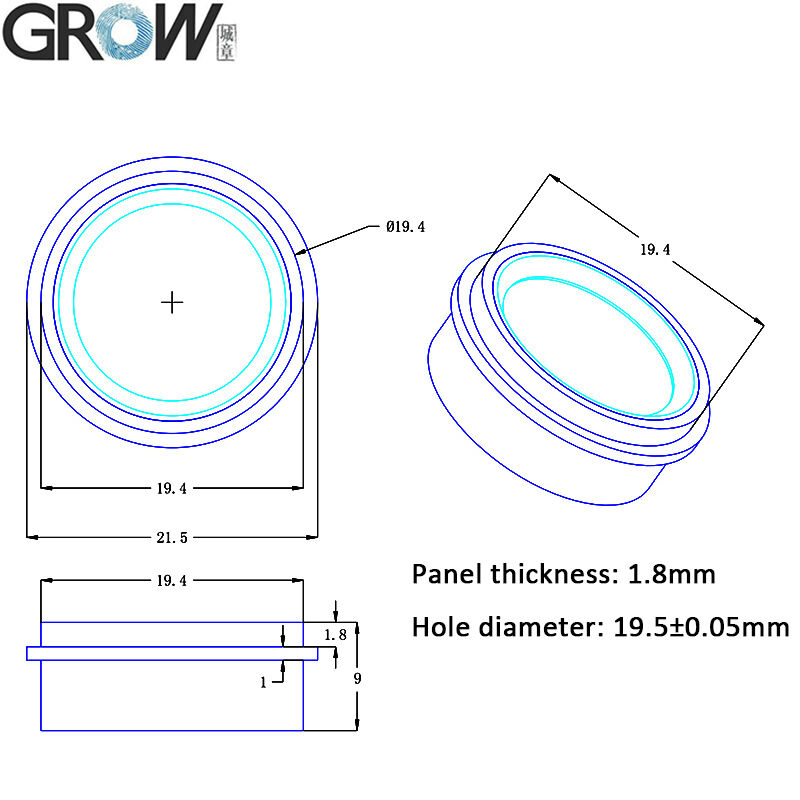

Fingerprint module external size Diameter 21.5 (mm)
Fingerprint module inner size Diameter 19.4 (mm)
Fingerprint module height 9 (mm)
Effective collection area Diameter 15.5 (mm)

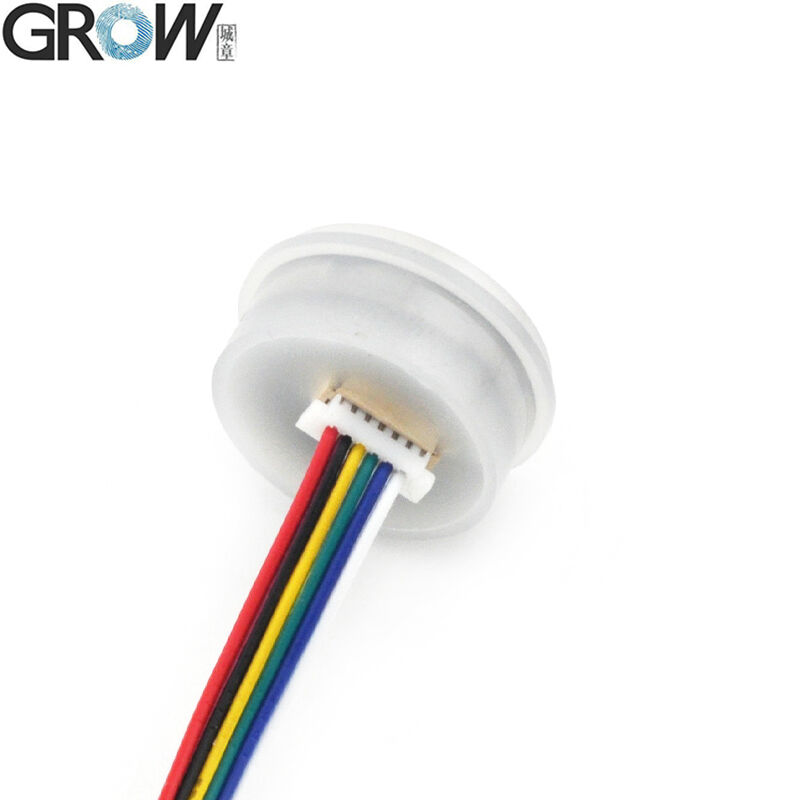

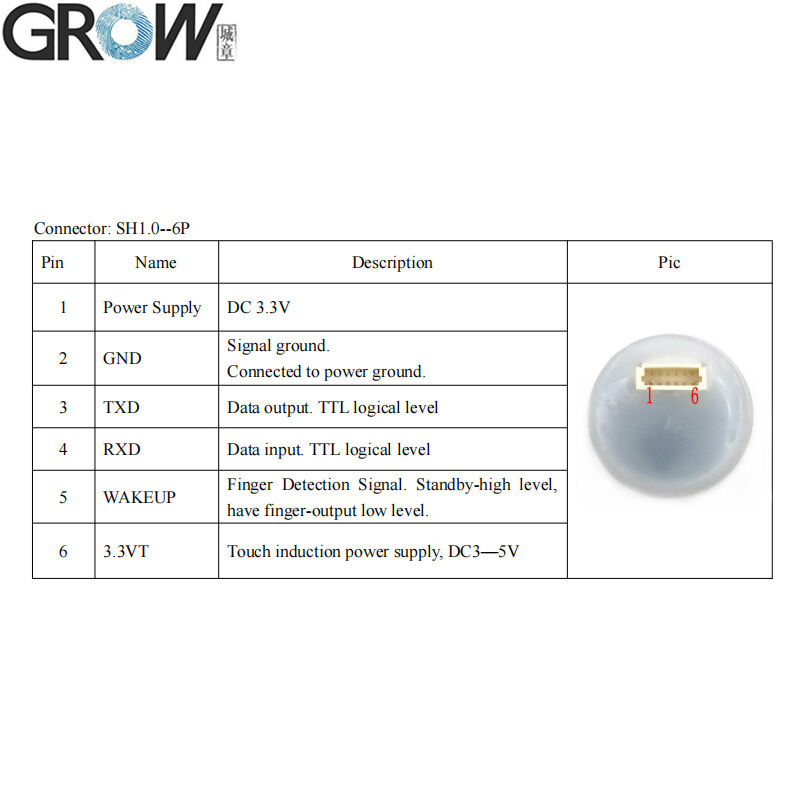

Connector SH1.0-6Pin
LED Control YES
LED Color RGB
Scanning Speed < 0.2 second
Verification Speed < 0.3 second
Matching Method 1:1; 1:N
FRR ≤1%
FAR ≤0.001%
Work environment -20C ---60C
Work Humidity 10-85%
Anti-static capacity 15KV
Abrasive resistance intensity 1 million times
Communications baud rate (UART): (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)


Files

·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual

If need user manual and SDK files,pls contact us.


GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files 1GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files 2GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files 3GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files 4GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files 5GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files 6GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files 7
GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files 8
GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files 9GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files 10GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files 11
GROW R502-F Pro 1500 Capacity Fingerprint Module RGB LED DC3.3V Scanner Reader For Access Control Arduino Windows Free SDK Files 12
